Products Description
| Category | Specification |
|---|---|
| Screen Size | 21.5-inch LCD Display |
| Resolution | 1920 × 1080 |
| Brightness | ≥250 cd/m² |
| Viewing Angle | ≥178° (H) / ≥178° (V) |
| Touch Technology | Projected Capacitive Touch |
| Touch Points | 10-Point Multi-Touch |
| Touch Response Time | ＜5ms |
| CPU | Intel® Core™ i3-3110M, 2.4GHz |
| Memory | 4GB DDR3 |
| Storage | 128GB SSD |
| Operating System | Windows Supported |
| Printer | 80mm Thermal Printer |
| QR Scanner | 1D & 2D Barcode Scanning |
| NFC Reader | IC Card / NFC Card Reader |
| Interface | USB |
| Installation | Desktop |
Functional Modules
| Module | Key Specifications |
|---|---|
| QR Code Scanner | Supports 1D & 2D barcode scanning from paper, LCD screens, and mobile phone displays. Reading distance: 5–30 cm. |
| Thermal Printer | 80mm thermal receipt printer, printing speed up to 250 mm/s, automatic paper cutting supported. |
| IC / NFC Card Reader | Supports IC cards, NFC cards, and CPU cards. Reading distance: 0–80 mm. Reading time: ＜100 ms. |
| Mainboard | Intel® Core™ i3-3110M processor, 2.4GHz. |
| Storage System | 4GB DDR3 memory and 128GB SSD. |
FAQ
Q: Does the kiosk support POS system integration?
A: Yes. The kiosk is designed for integration with POS and self-service ordering systems.
Q: What types of codes can the scanner read?
A: The scanner supports both 1D and 2D barcodes, including QR codes displayed on paper, LCD screens, and mobile devices.
Q: Does the device support NFC card reading?
A: Yes. The built-in reader supports IC cards, NFC cards, and CPU cards.
Q: What printer is included?
A: The kiosk integrates an 80mm thermal printer capable of high-speed receipt printing.
Q: Is the kiosk suitable for restaurant self-ordering?
A: Yes. The compact desktop design makes it ideal for restaurant counters, cafés, beverage shops, and retail ordering stations.
Product Advantages
Full Ordering Functionality

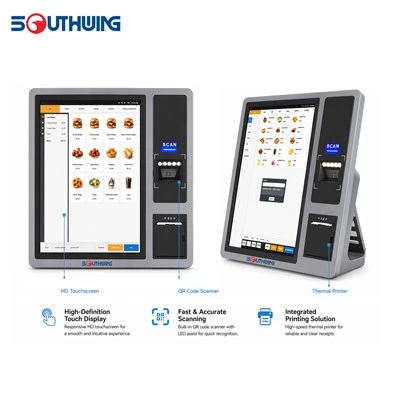

Integrates touch screen ordering, QR code scanning, NFC card reading, and receipt printing in a single device.
Flexible System Integration
Supports connection with POS systems and self-service ordering platforms.
Fast Customer Interaction
Responsive 10-point capacitive touch technology enables smooth and intuitive operation.
